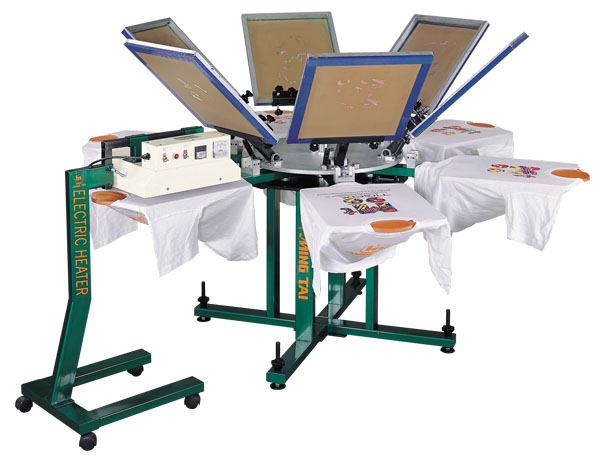

T-Shirt Printing Machine - MT-606T
Home > Products > Screen Printing Equipment > T-shirt Screen Printing Machine Including Optional Cap Printing Attachments and Drying System > T-Shirt Printing Machine
Product Name : T-Shirt Printing Machine
Product Model : MT-606T

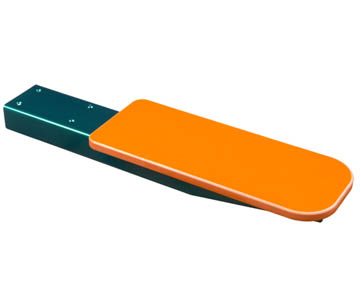

- The board is not made of the conventional wood or aluminum. This unit employs a specially designed Bakelite shirt board to fully overcome warping problems.
- The adoption of a gas spring, instead of a metal spring, ensures smooth operation.
- Manually operated.
- The unit is well suited for printing on knitting, textile garments and piece goods.
- Use in conjunction with a T-shirt dryer to greatly increase the impression of the printed image.
- Six-color screens are continuously driven and accurately positioned by a rotary disk.
- One operator can print continuously up to 6 substrate on one machine.
** We offer the good quality of PLASTISOL INKS. Please feel free to contact us for asking.
| MODEL | MT-808T | MT-606T | MT-404T | MT-101BT |
|---|---|---|---|---|
| MAXIMUM PRINTING AREA | 400 X 500 mm | 400 X 500 mm | 400 X 500 mm | 400 X 500 mm |
| PRINTING STATION | 8 stations | 6 stations | 4 stations | 1 station |
| PRINTING COLOR | 8 colors | 6 colors | 4 colors | 1 color |
| DIMENSION OF MACHINE | L2670 x W2670 x H1070 mm | L2300 x W2300 x H1070 mm | L2050 x W2050 x H1070 mm | L900 x W430 x H300 mm |
| MACHINE WEIGHT | 230kgs | 150kgs | 100kgs | 23kgs |
FLASH DRYER
T-SHIRT DRYER
CAP PRINTING ATTACHMENT
PRINTING TABLE FOR SHOULDER AND SLEEVE
