CD Screen Printing Machine

Product Name : CD Screen Printing Machine
Product Model : MT-CD1 / MT-CD2 / MT-CD3 / MT-CD4

ADD TO INQUIRY +
BACK TO LIST PREV NEXT
  • FUNCTIONS
  • SPECIFICATIONS
  • ACCESSORIES
  • APPLICATIONS
  • SAMPLES

MT-CD1 CD PRINTING MACHINE:
One Printing Station and one UV Dryer Station.

MT-CD2 CD PRINTING MACHINE:
Two Printing Stations and one UV Dryer Station.

MT-CD3 CD PRINTING MACHINE:
Three Printing Stations and two UV Dryer Stations.

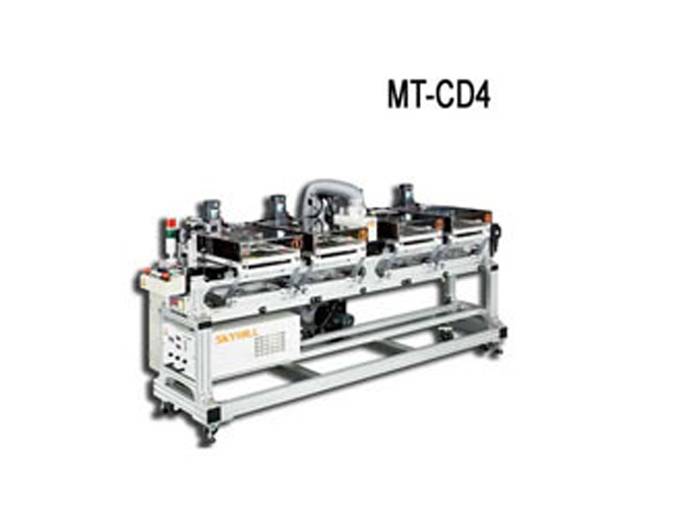

MT-CD4 CD PRINTING MACHINE:
Four Printing Stations and one UV Dryer Station.

FEATURES:

  • Equipped with U.V. curing device to eliminate the use of additional optional equipment.
  • Fully automatic operation. Easy to operate by simply pressing a key to perform automatic printing.
  • Laser point indexer for multi-color printing (optional).
  • Precision traverse design. Squeegee traverses quickly and smoothly for a precision printing effect.
  • Easy and affordable model, one operator can handle it.
  • Compact size, space-saving and easy to move.
  • Good for sampling, DIY or small quantity printing.
  • Employs a linear motion guide with servomotor and ball screw for precision, fast actions. (CD2,CD3,CD4 only)
MODEL NO. MT-CD1 MT-CD2 MT-CD3 MT-CD4
MACHINE DIMENSIONS 1200(L)x850(W)x1220 (H) mm 2020(L)x850(W)x1280 (H) mm 2800(L)x850(W)x1280(H) mm 2960(L)x850(W)x1280(H)
MACHINE WEIGHT 180 KGS 230KGS 410KGS 320KG
POWER 220V/ 25A / Single phase 220V/ 28A / Single phase 220V / 45A / Single phase 220V / 28A / Single phase
SCREEN SIZE 310 x310 mm (Custom Made) 310 x310 mm (Custom Made) 310 x310 mm (Custom Made) 310 x310 mm (Custom Made)
PRINTING SPEED 500 P / H 350 P / H 220 P / H 150 P / H
UV POWER 3.2 KW 3.2 KW 3.2 KW x 2 3.2 KW
STANDARD ATTACHMENTS Printing Station UV Dryer Station Printing Station UV Dryer Station Printing Station UV Dryer Station Printing Station UV Dryer Station
OPTIONAL ATTACHMENTS Laser point indexer for multi-color printing Laser point indexer for multi-color printing Laser point indexer for multi-color printing One process work for CMYK

Optional

QUICK SETTING SCREEN FRAME

SCREEN PROTECTIVE FILM

MINI CD / SQUARE BUSINESS CARD / OVAL BUSINESS CARD CD JIGS

OVAL BUSINESS CARD CD JIGS

It is ideal for printing CD, CD-R, Mini CD and business card CD, etc.
