Flame Surface Treatment Equipment
Product Name : Flame Surface Treatment Equipment
Product Model : MT-PA / MT-PL / MT-PR
- FUNCTIONS
- SPECIFICATIONS
- ACCESSORIES
- APPLICATIONS
Treatment speed may be steplessly varied to suit virtually any product thickness; print size can be adjusted to prevent product deformation due to improper treatment.
APPLICATIONS:
Instantly heats PE and PP products to 1100℃ with an air/gas combination to create an oxidized surface film in preparation for later printing. Ink adheres completely to the product, ensuring a clear, sharp, long-lasting printed surface.

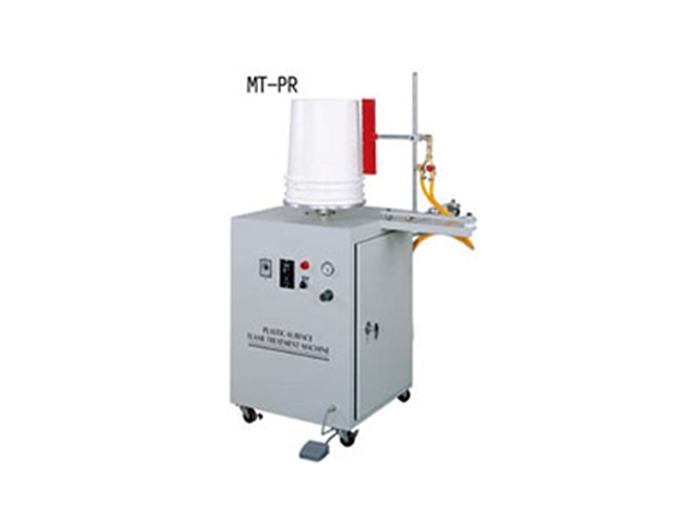

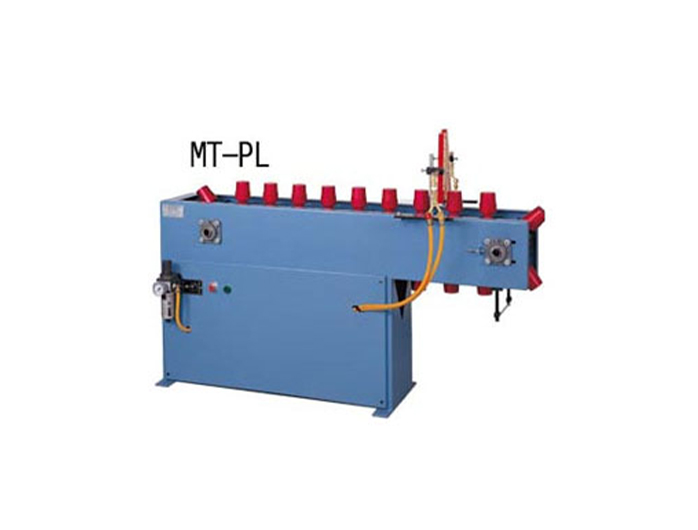

| MODEL | MT-PA | MT-PL | MT-PR |
|---|---|---|---|
| TREATMENT SPEED | 0-50M/min | 0-50M/min | APPROX. 600PCS/HR |
| MOTOR | 1/4 HP | 1/4 HP | 1/10 HP |
| POWER REQ. | 110/220V | 110/220V | 110/220V 50/60 KZ |
| COMPRESSOR | 2 HP; 6kg/cm2 (factory preset) | 2 HP; 6kg/cm2 (factory preset) | 2 HP; 6kg/cm2 (factory preset) |
| NOZZLES | 2 included | 2 included | 1 included |
| WORKPIECE DIES | --- | 22 not included | 1 not included |
| DIMENSIONS (mm) | 1830(L)x600(W)x1180(H)mm | 1580(L)x550(W)x1180(H)mm | 102(L)X75(W)X130(H)CM |
| WEIGHT | 250 kgs | 260 kgs | 70 kgs |
SURFACE TENSION TEST FLUIDS ( PENS )
It is suitable for PE, PP, POM, various plastics, metals and troublesome adhesive materials.
