T-Shirt Dryer/Flash Dryer
Product Name : T-Shirt Dryer / Flash Dryer
Product Model : MT-101D / MT-101FD
- FUNCTIONS
- SPECIFICATIONS
- APPLICATIONS
Name : T-SHIRT DRYER
Model : MT-101D
- It is suitable for surface drying of Water-based Ink. Max. temperature available is 110°C. It can cure the ink surface so that next color can be printed and multi-colors printing can be available.
- Specially designed for MT-808T/606T/404T.

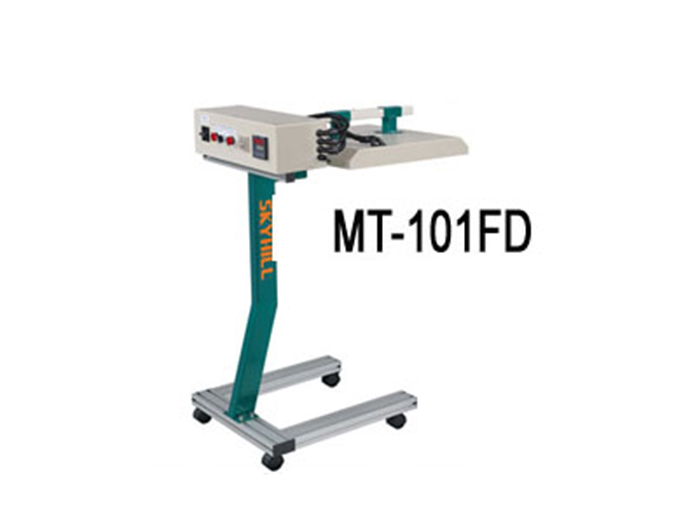

Name : FLASH DRYER
Model : MT-101FD
- It is suitable for surface drying of Plastisol Ink. Max. temperature available is 200°C. It can cure the ink surface within 3-5 seconds so that next color can be printed and multi-colors printing can be available.
- Specially designed for MT-808T/606T/404T.
| MODEL | MT-101D | MT-101FD |
|---|---|---|
| DESCRIPTION | T-SHIRT DRYER | FLASH DRYER |
| MACHINE SIZE | L800 x W450 x H1050 mm | L810 x W620 x H1130 mm |
| HEATING SURFACE | 370 x 445 mm | 370 x 445 mm |
| DRYING CAPACITY | 400 x 500 mm | 400 x 500 mm |
| HEATING TYPE | ALWAYS ON | INSTANT ON/OFF |
| POWER CONSUMPTION; HEATER MOTOR | 3 KW | 6 KW |
| POWER | 220V/SINGLE PHASE | 220V/SINGLE PHASE |
| MACHINE WEIGHT | 25 kgs | 36 kgs |
It is ideal for drying between color and color printing. Such as: T-shirt, shopping bag, piece goods, canvas shopping bag etc.
