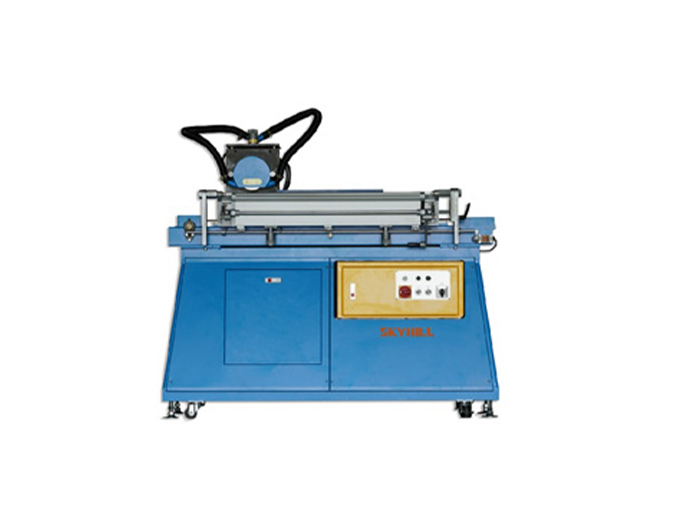

Automatic Squeegee Sharpener
Product Name : Automatic Squeegee Sharpener
Product Model : MT-700GR、MT-1000GR、MT-1300GR、MT-1600GR、MT-2000GR
- FUNCTIONS
- SPECIFICATIONS
Product Features:
- The squeegee holder is secured by fast clamping devices, the parallel of the squeegee could be adjusted.
- It can be used for different brands of squeegee with mechanical or manual squeegee holder.
- Diamond style grinding stone with high/low speed selection.
- 0~45° sharpening function is standard. Extra semicircle sharpening is an option.
- To remove the rubber waste by applying vacuum.
| Automatic Squeegee Sharpener | |||||
|---|---|---|---|---|---|
| Types | MT-700GR | MT-1000GR | MT-1300GR | MT-1600GR | MT-2000GR |
| Machine dimension(cm) | 180x48x152 | 210x48x152 | 240x48x152 | 270x48x152 | 310x48x152 |
| Sharpening Stroke(cm) | 70 | 100 | 130 | 160 | 200 |
| Sharpening shape | semicircle / Flat / 0-45° | ||||
| Weight (Kg) | 250 | 360 | 430 | 510 | 680 |
| Power supply/Consumption | 3 phase, 50/60HZ (voltage is negotiable) / 2.25 KW | ||||
