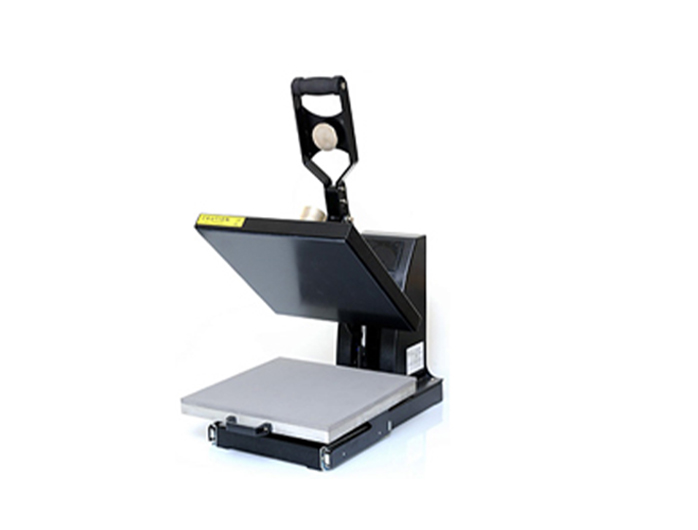

Heat Transfer Machine

Product Name : Heat Transfer Machine

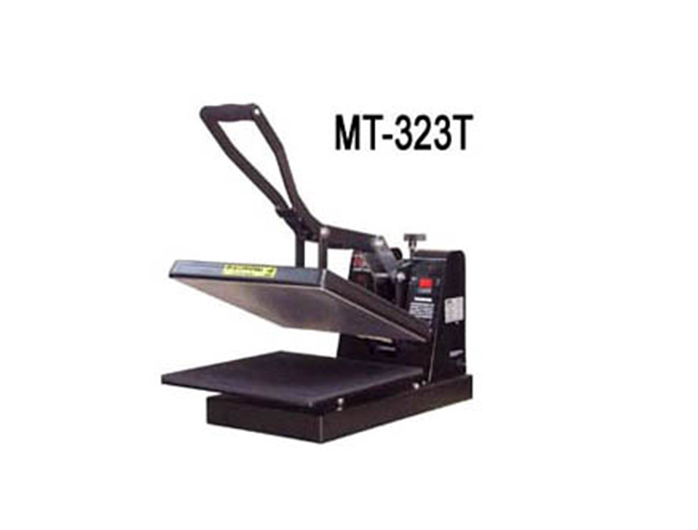

Product Model : MT-313T / MT-323T

  • FUNCTIONS
  • SPECIFICATIONS
  • APPLICATIONS
  • SAMPLES
  • Floating heat plate provides even, consistent and dependable application.
  • The cast aluminum table features maximum durability, long service life and a uniform temperature distribution.
  • Excellent for transfer printing on T-shirt, sweatshirt, wicking shirt, metal plates/name plates, magnetic materials, tableware mat, puzzles, canvas bag.
  • Heating temperature display combined with working time LED display assures high accuracy operations.
  • Operation time can be preset. When the set time is reached, a buzzer sounds to notify the operator.
  • Employs high quality heater for stable heating, stable temperature range, and long service life.
MODEL MT-313T MT-323T
PLATEN SIZE 41x51 cm 38x38 cm
MAXIMUM OPERATING TEMPERATURE 420 o F / 215 o C 420 o F / 215 o C
VOLTAGE 110V or 220V 110V or 220V
POWER AMPS / WATTS 110V 14.5 / 1750 12.5 / 1500
POWER AMPS / WATTS 220V 10 / 2000 7.5 / 1500
SHIPPING WEIGHT 44.1 kg 36 kg
BOX SIZE 19”x32.5”x18.5”
48x83x53cm
18”x32.5”x20.5”
46x83x52cm

Excellent for transfer printing on T-shirt, puzzles, cup pad, piece goods, shopping bag, canvas shopping bag, mouse pad, etc.
