Pad Printing Machine
Product Name : Pad Printing Machine
Product Model : MT-268DS / MT-268D / MT-168D
- FUNCTIONS
- SPECIFICATIONS
- ACCESSORIES
- APPLICATIONS
- SAMPLES
- This printer is specially designed to produce superior results when printing irregular or uneven objects.
- Computer control provides easy operations.
- An indicator light identifies problems early to avoid costly breakdowns.
- Touch-sensing control panel provides precise movement of the printing pad.
- Operates with low noise levels and high efficiency.
| MODEL | MT-168D | MT-268D | MT-268DS |
|---|---|---|---|
| COLOR | 1 | 1 | 2 |
| Max. Printing Area | 60 x 80 mm ( Φ60 ) | 80 x 200 mm ( Φ80 ) | 80 x 100 mm ( Φ80 ) |
| PRINTING SPEED | 2400 / hr. | 2100 / hr. | 1600 / hr. |
| AIR CONSUMPTION | 3.0 CFM ( 60 PSI ) | 3.0 CFM ( 60 PSI ) | 3.0 CFM ( 60 PSI ) |
| NT. WT | 39 kgs | 105 kgs | 112 kgs |
| MACHINE DIMENSIONS | 530 x 400 x 625 mm | 705 x 420 x 1235 mm | 705 x 585 x 1235 mm |
| PACKING DIMENSIONS | 650 x 500 x 825 mm | 850 x 570 x 1435 mm | 850 x 735 x 1435 mm |
※Customized specifications are available.
Optional
TRANSFER PAD
DOCTOR BLADE, INK BRUSH, INK RESERVOIR, DOCTOR BLADE HOLDER
DIE(STEEL PLATE), (CLICHE)

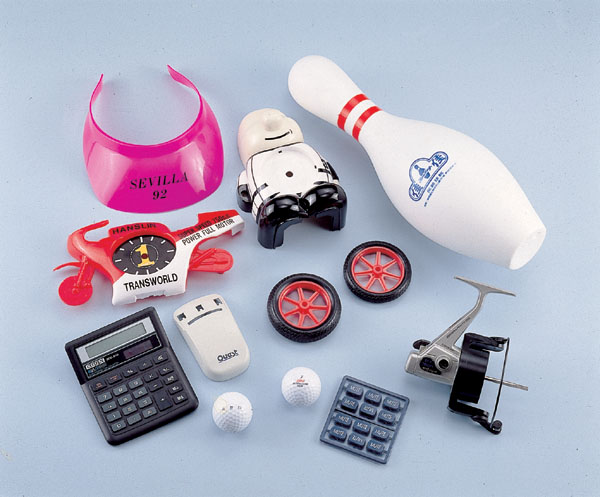

It is ideal for printing computer keys, calculator keys, electronic control panels, electric toys, glasses, golf balls, ceramics, stationary, etc.
