Motor-Driven Flat Bed Screen Printing Machine

Product Name : Motor-Driven Flat Bed Screen Printing Machine
Product Model : MT-500M / 600MM / 600SM / 800M / 800MT

ADD TO INQUIRY +
BACK TO LIST PREV NEXT
  • FUNCTIONS
  • SPECIFICATIONS
  • APPLICATIONS
  • SAMPLES
  • Imported cylinders from Japan to ensure good quality.
  • The screen is vertically positioned to prevent ink overflow from the side, therefore lowering ink consumption.
  • Equipped with THK latest precision linear motion guides and DC motor, printing can be low noise, high precision, wear-less and step-less adjustment.
  • Squeegee and flood bar, with THK latest precision linear motion guides, is easy to clean, reset and always wear-less.
  • Sensor is provides for controlling the printing stroke, which can be laterally adjusted to suit various screen sizes.
  • The printing table is radially designed to provide powerful suction with easy control.
  • The printing table is equipped with 3 sets of micrometric adjustment knobs for precision alignment of printing in lengthwise, lateral, and angular directions.

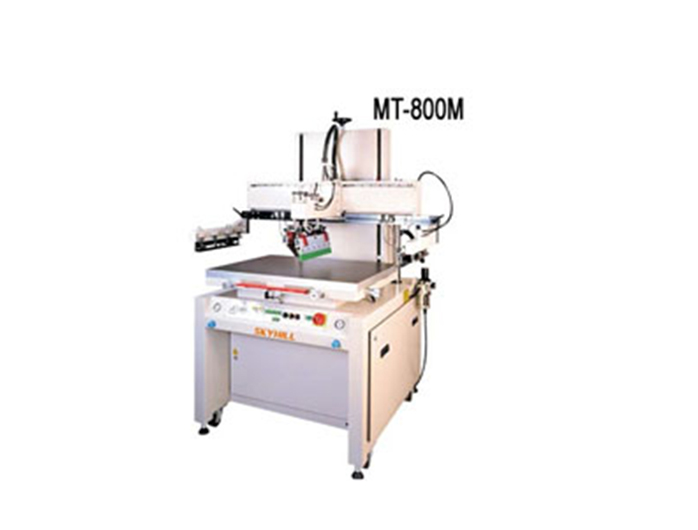

  • With pneumatic-powered hydraulic peel-off system (for MT-800M/800MT only) screen peeling speed and position are adjustable to avoid sticking. Also, it is ideal for large format and dot pattern printing.

M：Standard model
MM：With peel-off device and vertical elevation of printing head.
SM：With peel-off device, vertical elevation of printing head, and servomotor drive.

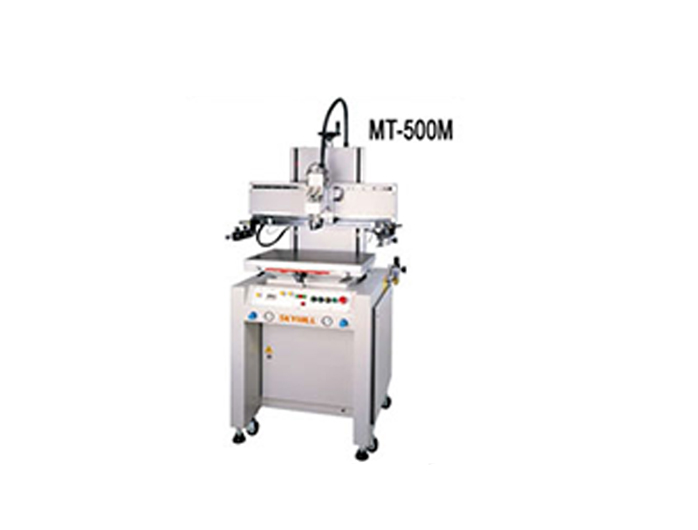

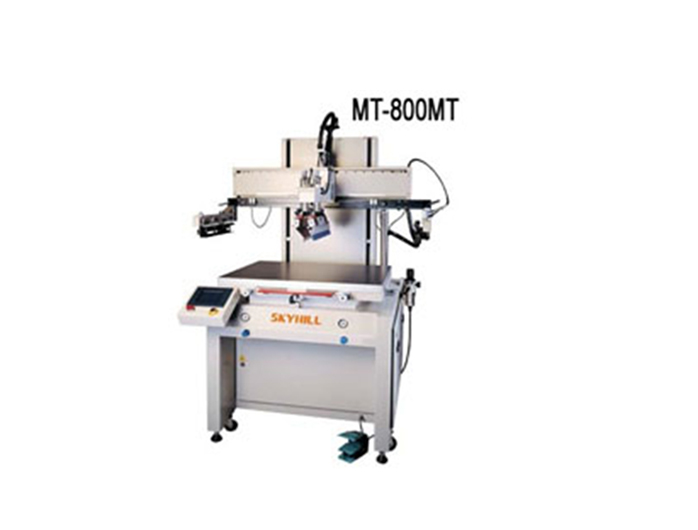

MODEL MT-500M MT-600M / 600MM / 600SM MT-800M / 800MT
MAX. PRINTING AREA 350 mm x 470 mm 400 mm x 570 mm 600 mm x 750 mm
MAX. THICKNESS OF WORKPIECE 100 mm 80 mm 30 mm
MAX. FRAME SIZE (O.D.) 600 mm x 800 mm 700 mm x 900 mm 1000 mm x 1250 mm
PRINTING ACCURACY +/- 0.02 mm +/- 0.02 mm +/- 0.02 mm
PRINTING PLATEN SIZE 400 mm x 600 mm 480 mm x 700 mm 700 mm x 900 mm
PNEUMATIC PRESSURE 6-8 kgs / cm 2 6-8 kgs / cm 2 6-8 kgs / cm 2
PRINTING SPEED 600-1800 P/H 600-1800 P/H 300-600 P/H
POWER 220 V / SINGLE PHASE 220 V / SINGLE PHASE 220 V / SINGLE PHASE
MACHINE DIMENSIONS L850 x W750 x H1650 mm L950 x W800 x H1750 mm L1510 x W1200 x H1880 mm
MACHINE WEIGHT 230kgs 420 kgs 630 kgs

It is ideal for PC Board, Advertising, Ceramic decal, Membrane Switch, Name plate and industrial flat area printing, etc.
