Pneumatic Type Curve Screen Printing Machine
Product Name : Pneumatic Type Curve Screen Printing Machine
Product Model : MT-400B / 500B
- FUNCTIONS
- SPECIFICATIONS
- ACCESSORIES
- APPLICATIONS

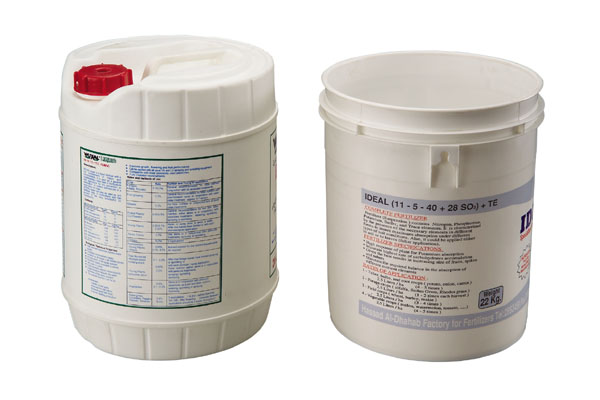

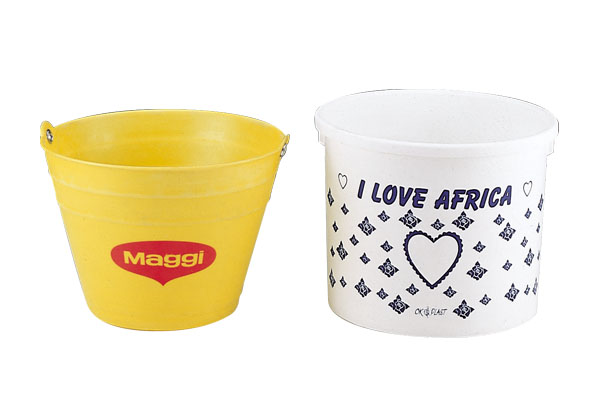

- SAMPLES
- Precise multi-color printing through synchronized transmission of gear and rack with the use of proper workpiece holder, original patterns are accurately reproduced.
- The substrate holder may be adjusted to meet substrate variation, and micrometric adjusted in forward right/left, tilting direction, for accurate squeegee positioning.
- The screen is vertically positioned to prevent ink overflow from the side, therefore lowering ink consumption.
- Superior shock absorbing system provides precise and stable operations for multi-color printing.
- Printing stroke can be adjusted laterally to suit various screen sizes.
- Engineering design delivers convenient loading and unloading of workpiece with a significant reduction in effort.
| MODEL | MT-400B | MT-500B |
|---|---|---|
| MAXIMUM PRINTING LENGTH | 200 mm | 200 mm |
| DIAMETER OF CURVE PRINTING | Φ8-Φ120 mm | Φ10-Φ150 mm |
| COMPRESSOR HORSEPOWER | 1HP | 1HP |
| COMPRESSOR PRESSURE | 4-7 kg / cm 2 | 5-7 kg / cm 2 |
| VOLTAGE | 110V ( 220V ) , 50 / 60 HZ | 110V ( 220V ) , 50 / 60 HZ |
| PRINTING SPEED | 600 - 1200 P/H | 500 - 1200 P/H |
| MACHINE DIMENSIONS | D670 x W700 x H1680 mm | D770 x W800 x H1680 mm |
| PACKING SIZE | L800 x W770 x H1900 mm | L900 x W870x H1900 mm |
| MACHINE WEIGHT | 130 kgs | 150 kgs |
| GROSS WEIGHT | 200 kgs | 220 kgs |
Standard

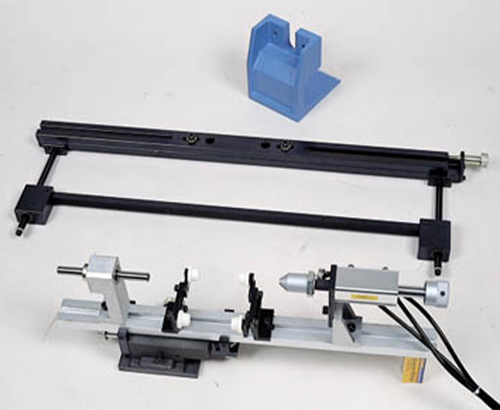

CURVE PRINTING ATTACHMENTS
Optional

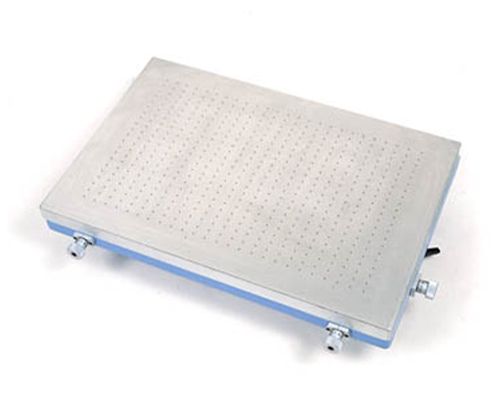

FLAT PLATEN ATTACHMENTS WITH VACUUM

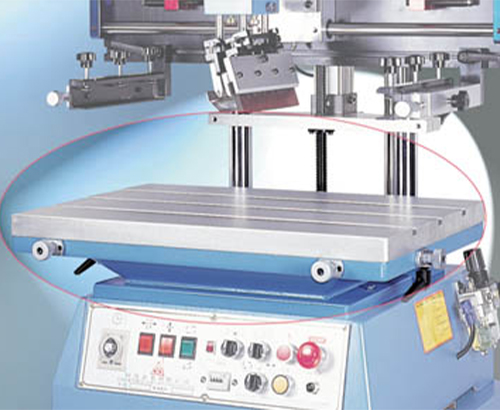

FLAT PLATEN ATTACHMENTS WITH SLOT

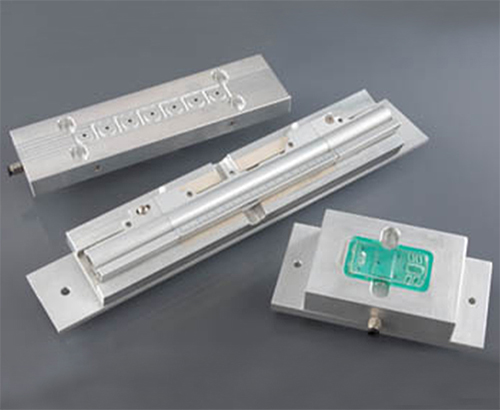

SURFACE JIGS AND FIXTURES
CHROMATIC AUTOMATIC POISTIONING
CURVE JIGS AND FIXTURES
It is idea for medium and small size curve printing.
