Pneumatic Type Curve Screen Printing Machine - MT-400B / 500B / 650B

  • Functions
  • Specifications
  • Accessories
  • Applications
  • Samples
Product Name : Pneumatic Type Curve Screen Printing Machine
Product Model : MT-400B / 500B / 650B
  1. Precise multi-color printing through synchronized transmission of gear and rack with the use of proper workpiece holder, original patterns are accurately reproduced.
  2. The substrate holder may be adjusted to meet substrate variation, and micrometric adjusted in forward right/left, tilting direction, for accurate squeegee positioning.
  3. The screen is vertically positioned to prevent ink overflow from the side, therefore lowering ink consumption.
  4. Superior shock absorbing system provides precise and stable operations for multi-color printing.
  5. Printing stroke can be adjusted laterally to suit various screen sizes.
  6. Engineering design delivers convenient loading and unloading of workpiece with a significant reduction in effort.
MODEL MT-400B MT-500B MT-650B
MAXIMUM PRINTING LENGTH 200 mm 200 mm 200 mm
DIAMETER OF CURVE PRINTING Φ8-Φ120 mm Φ10-Φ150 mm Φ 10 mm – Φ 190 mm
COMPRESSOR HORSEPOWER 1HP 1HP 1HP
COMPRESSOR PRESSURE 4-7 kg / cm 2 5-7 kg / cm 2 4-7 kg / cm 2
VOLTAGE 110V ( 220V ) , 50 / 60 HZ 110V ( 220V ) , 50 / 60 HZ 110V ( 220V ) , 50 / 60 HZ
PRINTING SPEED 600 - 1200 P/H 500 - 1200 P/H 600 - 1200 P/H
MACHINE DIMENSIONS D670 x W700 x H1680 mm D770 x W800 x H1680 mm D770 x W950 x H1680 mm
PACKING SIZE L800 x W770 x H1900 mm L900 x W870x H1900 mm L1050 x W870 x H1900 mm
MACHINE WEIGHT 130 kgs 150 kgs 210 kgs
GROSS WEIGHT 200 kgs 220 kgs 280 kgs

Standard >

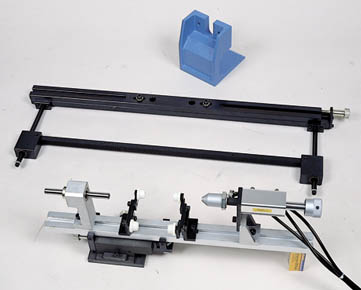

CURVE PRINTING ATTACHMENTS CURVE PRINTING ATTACHMENTS


line


Optional >

FLAT PLATEN ATTACHMENTS WITH VACUUM FLAT PLATEN ATTACHMENTS WITH VACUUM

FLAT PLATEN ATTACHMENTS WITH SLOT FLAT PLATEN ATTACHMENTS WITH SLOT

SURFACE JIGS AND FIXTURES SURFACE JIGS AND FIXTURES

CHROMATIC AUTOMATIC POISTIONING CHROMATIC AUTOMATIC POISTIONING

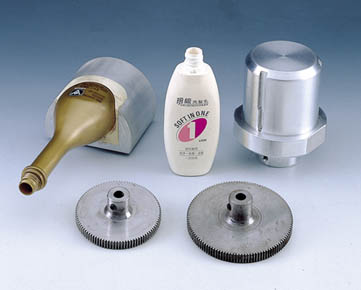

CURVE JIGS AND FIXTURES CURVE JIGS AND FIXTURES

It is idea for medium and small size curve printing.
