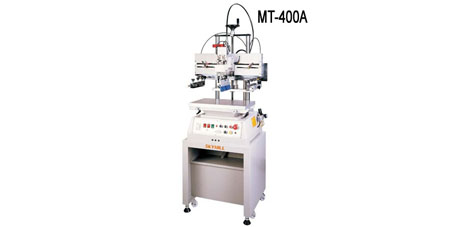

Pneumatic Type Flat Screen Printing Machine - MT-400A / 500A / 650A

  • Pneumatic Type Flat Screen Printing Machine - MT-400A / 500A / 650A
Inquiry PREV NEXT BACK TO LIST
  • Functions
  • Specifications
  • Accessories
  • Applications
  • Samples
Product Name : Pneumatic Type Flat Screen Printing Machine
Product Model : MT-400A / 500A / 650A
  1. The squeegee printing system utilizes an imported linear bearing guide for extremely stable printing.
  2. Sensor is provided for controlling the printing stroke, which can be really adjusted to suit various screen sizes.
  3. The printing table is radially designed to provide powerful suction with easy control.
  4. The flood bar can pre-coat ink or coat during printing, minimizing screen clogging.
  5. The printing table is equipped with 3 sets of micrometric adjustment knobs for precision alignment of printing in lengthwise, lateral, and angular directions.
  6. Pneumatically driven, low-noise levels, pollution and trouble free performance.
  7. The screen is vertically positioned to prevent ink overflow from the side, therefore lowering ink consumption.
MODEL MT-400A MT-500A MT-650A
PRINTING PLATEN 315 mm x 500 mm 400 mm x 600 mm 480 mm x 700 mm
AREA OF FLAT PRINTING 250 mm x 350 mm 300 mm x 460 mm 400 mm x 600 mm
MAXIMUM FRAME SIZE(O.D.) 450 mm x 550 mm 450 mm x 650 mm 550 mm x 800 mm
MAXIMUM THICKNESS OF WORKPIECE 150 mm 150 mm 150 mm
COMPRESSOR HORSEPOWER 1HP 1HP 2HP
COMPRESSOR PRESSURE 4-7 kg / cm2 5-7 kg / cm2 5-7 kg / cm2
VOLTAGE 110V(220V) , 50 / 60 HZ 110V(220V) , 50 / 60 HZ 110V(220V) , 50 / 60 HZ
PRINTING SPEED 600 - 1200 P/H 500 - 1200 P/H 500 - 1200 P/H
MACHINE DIMENSIONS D580 x W680 x H1680 mm D620 x W780 x H1680 mm D700 x W930 x H1680 mm
PACKING SIZE L780 x W680 x H1900 mm L880 x W720x H1900 mm L1030 x W800 x H1900 mm
MACHINE WEIGHT 130 kg 150 kg 190 kg
GROSS WEIGHT 200 kg 220 kg 260 kg

Standard >

FLAT PLATEN ATTACHMENTS WITH VACUUM FLAT PLATEN ATTACHMENTS WITH VACUUM



line



Optional >

FLAT PLATEN ATTACHMENTS WITH SLOT FLAT PLATEN ATTACHMENTS WITH SLOT

SURFACE JIGS AND FIXTURES SURFACE JIGS AND FIXTURES

CURVE PRINTING ATTACHMENTS CURVE PRINTING ATTACHMENTS

CHROMATIC AUTOMATIC POISTIONING CHROMATIC AUTOMATIC POISTIONING

CURVE JIGS AND FIXTURES CURVE JIGS AND FIXTURES

It is ideal for medium and small format printing. For example: Stickers, Film, Nameplates etc.

FLAT AND CURVE SAMPLES
FLAT AND CURVE SAMPLES
