Roll to Roll WEB-FED Screen Printing Equipment - MT-5070
Product Name : Roll to Roll WEB-FED Screen Printing Equipment
Product Model : MT-5070
- FUNCTIONS
- SPECIFICATIONS
- ACCESSORIES
- APPLICATIONS
- SAMPLES
- User-friendly PC based control combined with touch screen monitor for maximum operation convenience.
- The printing head is raised vertically for convenient access to screen and squeegee.
- Vacuum suction table for efficient workpiece fixing, with blow back function.
- The squeegee mechanism has a pressure stabilizer ensuring constant pressure at all times.
- Automatic tension control.
- Aluminum alloy machine frame ensures high stability and no deformation.
- Safety guard with CE standard provides extra safety for the operator and machine.
- Winding and unwinding use air shaft to prevent slippage, and include advanced web guide for precision and neatness.
- The take up roller features vacuum suction, ensuring smooth film surface and proper film tension at all times.

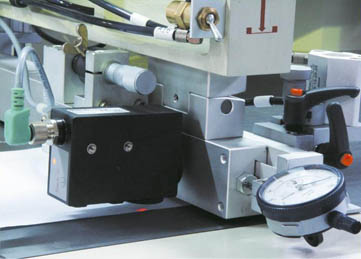

- Winding mechanism utilizes advanced sonar sensor for accurately sensing transparent and non-transparent film.
- Precision linear motion guides are provided on vertical and horizontal slideways for extremely smooth and stable traverse.

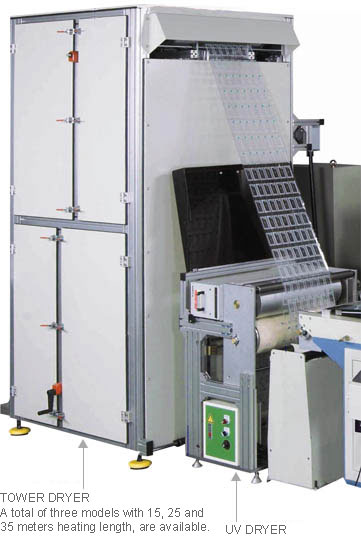

- Two dryers are available. Air cushion Hot Air Tower Dryer (heating length: 15M,25M,35M) and UV dryer with cooling roller. (Optional) Punching device.
| Model | MT-5070 |
|---|---|
| Max.printing area | 500x700mm |
| Max.size of screen frame | 800x1100mm |
| Min. size of screen frame | 230 - 520 mm |
| Max.material diameter | Φ500 mm |
| Unwinder core diameter | Φ75mm |
| Max. rewinding diameter | Φ500mm |
| Winder core diameter | Φ75mm |
| Machine Speed | 600m/hr |
| Travel | 800mm |
| Thickness of material | 0.025-0.25 mm |
| Positioning accuracy | ±0.05 mm |
| Squeegee drive motor ( servo ) | 0.75kw |
| Take up drive motor ( servo ) | 1 kw |
| Unwinding motor | 1 HP |
| Winding motor | 1 HP |
| Platen vacuum motor | 1/2 HP |
| Take up roller vacuum motor | 1/2 HP |
| Air compressor motor | 2 HP |
| Working air pressure | 5–7kg/cm² |
| Machine Weight ( L x W x H ) | 1350 KGS/L3430xW1300xH2000 ( mm) |
| Unwinder Weight (LxWxH) | 350 KGS/L630xW1170xH1050 (mm) |
| Winder Weight ( L x W x H ) | 350KGS/L700xW1170xH1400 (mm) |
| Rewinder Weight ( L x W x H ) | 450KGS/L660xW1100xH1050 (mm) |
Feature
Optional

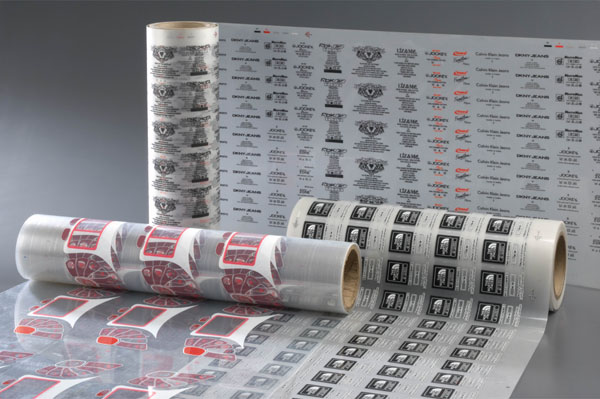

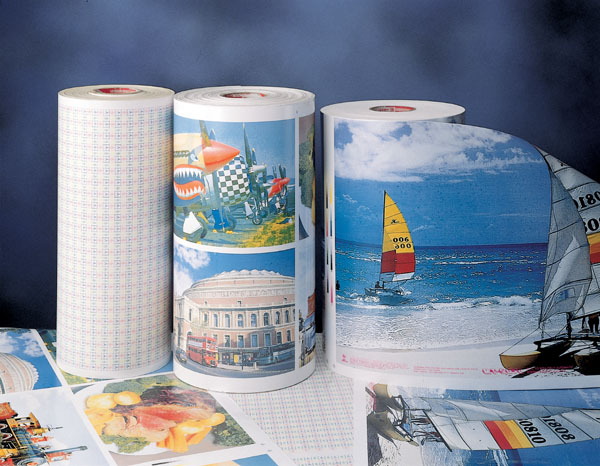

This is specially-designed web-fed screen printing machine for flexible stock, both transparent and non-transparent, in rolls such as: diffuser, FPC, Paper, Transfer Paper, Stickers, OPP, PVC, Mylar, PC, PET, Plastic Leather, Aluminum Foil and so on. These can be used for the following products:
- Heat transfers.
- Electronics-FPC (Flexible Circuits), Membrane Switch, IMD and Diffusers, etc.
- Specialized labels for UL/CSA, wine and liquor bottles, Cosmetics and Shampoo Bottles, as well as Industrial, Toy, Automotive, Compact Disc and Video products.
- Nameplates and graphic Overlays.
- Biosensor (such as Blood Glucose Test Strip)
