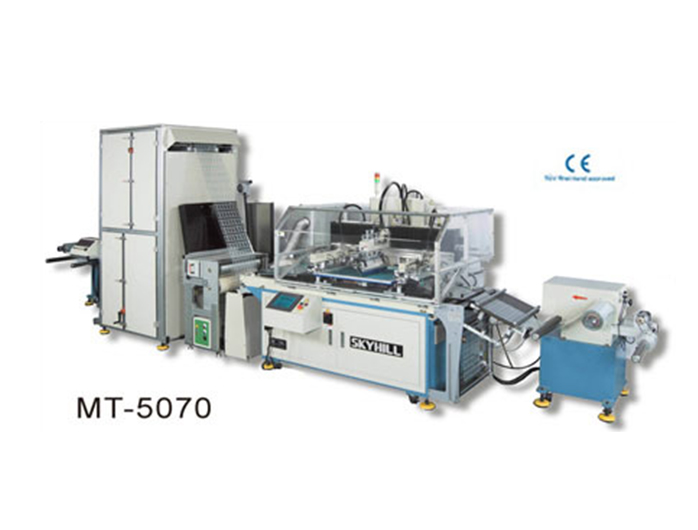

Roll to Roll Web-Fed Screen Printing Equipment
Product Name : Roll to Roll Web-Fed Screen Printing Equipment
Product Model : MT-5070A
- FUNCTIONS
- SPECIFICATIONS
- ACCESSORIES
- APPLICATIONS
- SAMPLES

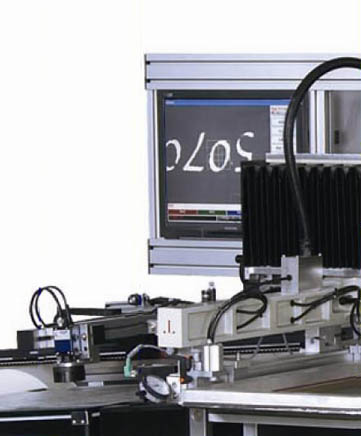

- User-friendly PC based control combined with touch screen monitor for maximum operation convenience.
- The printing head is raised vertically for convenient access to screen and squeegee.
- Vacuum suction table for efficient workpiece fixing, with blow back function.
- The squeegee mechanism has a pressure stabilizer ensuring constant pressure at all times.
- Automatic tension control.
- Aluminum alloy machine frame ensures high stability and no deformation.
- Safety guard with CE standard provides extra safety for the operator and machine.
- Winding and unwinding use air shaft to prevent slippage, and include advanced web guide for precision and neatness.
- The take up roller features vacuum suction, ensuring smooth film surface and proper film tension at all times.
- Winding mechanism utilizes advanced sonar sensor for accurately sensing transparent and non-transparent film.
- Precision linear motion guides are provided on vertical and horizontal slideways for extremely smooth and stable traverse.

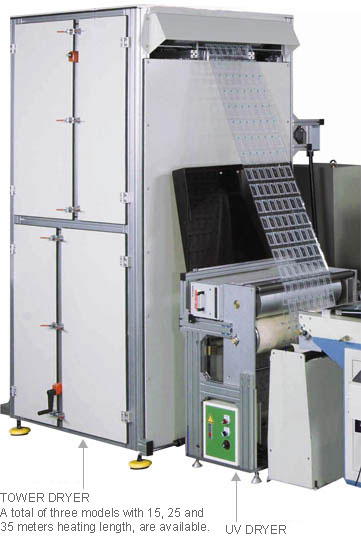

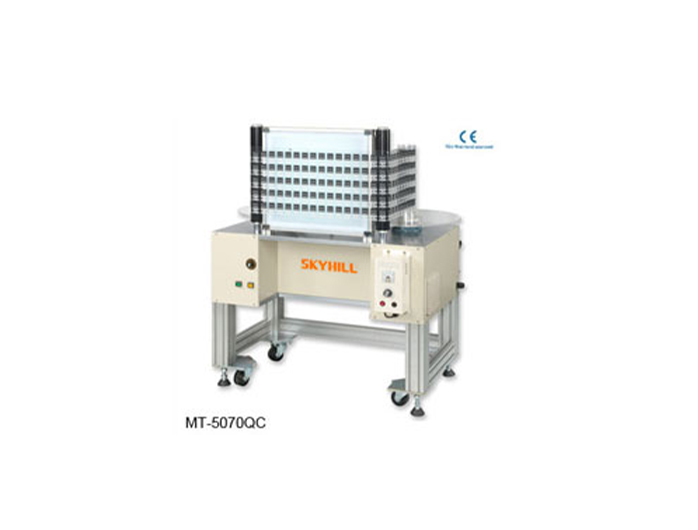

- Two dryers are available.Air cushion Hot Air Tower Dryer (heating length: 15M,25M,35M) and UV dryer with cooling roller. (Optional)

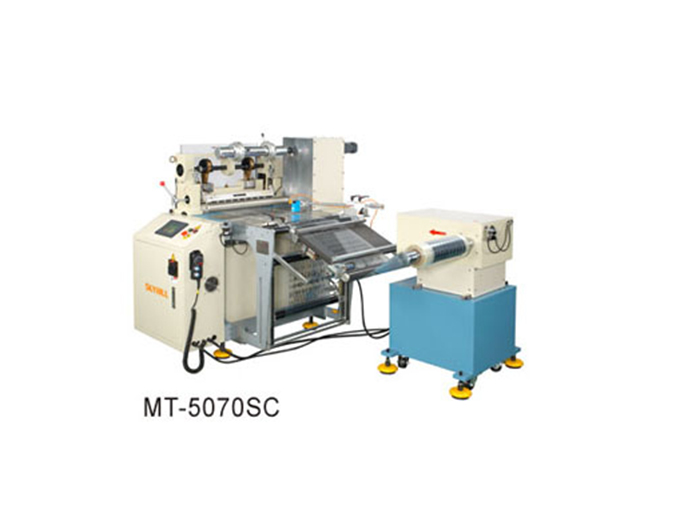

- Punching device.
| MODEL | MT-5070A |
|---|---|
| Max.Printing Area | 500x700mm |
| Max.Screen Frame Sizes | 800x1100mm |
| Infeed Web Width | 230-520mm |
| Max.Winding Diameter | Φ500 mm |
| Unwinding Air Shaft Diameter | Φ75mm |
| Max.Winding diameter | Φ500mm |
| Winding Air Shaft Diameter | Φ75mm |
| Printing Speed | 420-600 m/hr |
| Travel | 800mm |
| Thickness of Material | 0.025 – 0.25 mm |
| Positioning Accuracy | ±0.05mm |
| Web Guide Accuracy | ±0.05mm |
| Unwinder Drive Motor (Servo) | 0.75 kw |
| Squeegee Drive Motor (Servo) | 0.6kw |
| Take up Drive Motor (Servo) | 0.75kw |
| Unwinding Motor | 90 w |
| Winding Motor | 1HP |
| Platen Vacuum Motor | 1HP |
| Take up Roller Vacuum Motor | 1HP x 2 |
| Vacuum Chamber Motor | ¼HP |
| Working Air Pressure | 5–7kg/cm² |
| Machine Weight/Dimensions | 1350kgs/L4650xW1300xH2000(mm) |
| Winder Weight/Dimensions | 350kgs/L700xW1170xH1400(mm) |
| Rewinder Weight/Dimensions | 300kgs/L660xW1100xH1050(mm) |
| Web Treater (Length) | 350mm |
| Rated Power Source | 220V–50/60Hz–Φ3–20A |
Feature

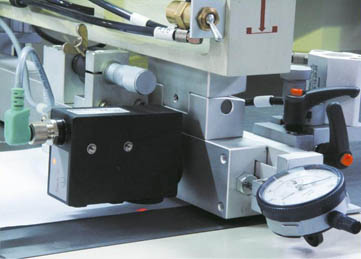

SINGLE SIDE DOUBLE PHOTOCELL WEB GUIDE
Optional

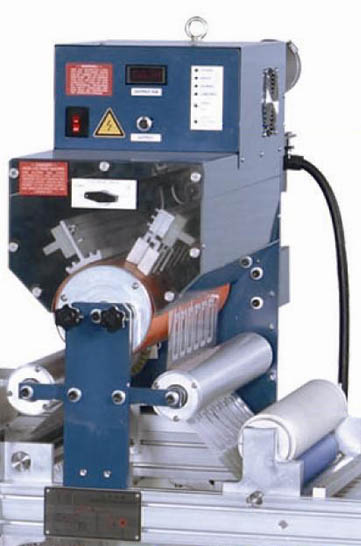

WEB TREATER
CCD SENSOR

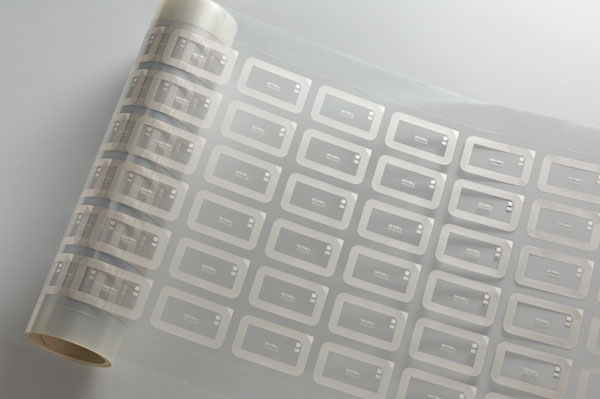

This is specially-designed web-fed screen printing machine for flexible stock, both transparent and non-transparent, in rolls such as: diffuser, FPC, Paper, Transfer Paper, Stickers, OPP, PVC, Mylar, PC, PET, Plastic Leather, Aluminum Foil and so on. These can be used for the following products:
- Heat transfers.
- Electronics-FPC (Flexible Circuits), Membrane Switch, IMD and Diffusers etc.
- Specialized labels for UL/CSA, wine and liquor bottles, Cosmetics and Shampoo Bottles, as well as Industrial, Toy, Automotive, Compact Disc and Video products.
- Nameplates and graphic Overlays.
- Biosensor (such as Blood Glucose Test Strip)
